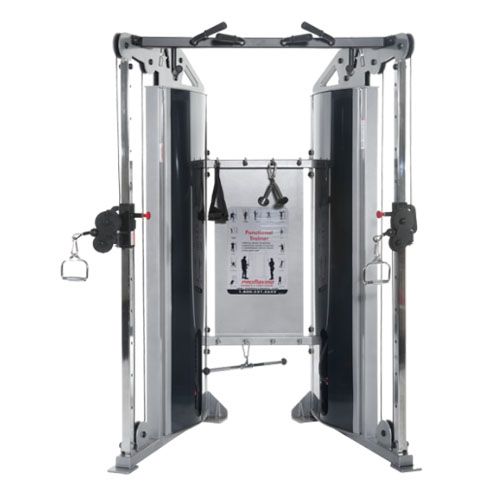

Pro Maxima Raptor Series CM-335 Multi Functional Trainer

This product ships directly from the manufacturer. Estimated delivery is 4-6 weeks.

Features:

  • Receive a total body workout with this piece of equipment.
  • 2″ x 2″ & 2″ x 4″ Heavy wall steel frame.
  • Dual adjustable pulley system with 2 enclosed weight stacks.
  • 11 different pulley adjustments on each column.
  • Multiple persons can work out at the same time.
  • Includes a multi-grip chin-up station.
  • Total body workout.
  • Over 40 exercises.
  • Bright red colored pull knobs.
  • Instructional color placard.
  • 1/4″ nylon coated aircraft cable driven.
  • All pivoting axis have radial bearings.
  • Powder coat finish.
  • Accessory storage.
  • 42″ L x 58″ W x 84″ H
  • 700 lbs
  • Adjustable positions on all machines to accommodate all users to ensure correct bio-mechanical function. Adjustments are made with Heavy Duty spring loaded colored pull-pin knobs.
  • Weight Stacks are adjusted with a tethered, magnetic selector pin that extends through the entire weight stack.
  • Cable system with 1/4″ thick 4800 lb test military spec galvanized oil impregnated air craft cable finished with a tough nylon coating to 3/16″ thick.
  • Manual tension adjusters on every machine for the cable adjustments.
  • Weight stack plates are solid steel machined precisely to with in an oz of weight.
  • Weight stack is accessible from a seated position.
  • Weight stacks are enclosed in full length shrouds.
  • Weight system allows user to increase by 5 lb increments.
  • Instructional guide charts used to inform correct usage for each machine along with anatomical highlights to show which muscle groups are being worked.
  • Each machine is made with a lower starting weight stack and has counter-balanced arms when needed.
  • Heavy-duty 40 oz. commercial grade marine Naugahyde upholstery which is 85% mildew resistant. High density closed cell foam reinforced by thick plywood backing for stable support.
  • Exceeds all ASTM requirements.
  • Guide rods are 1″ CCRO ANSI 1045, solid steel hard chrome-plated with tensile strength of 75,000psi.
  • Frames are constructed of High Stress 3/16″ ASTM A-500 grade B structural steel tubing (11 gauge) 2″x4″, 2″x3″ tubing. 2″x3″ tubing on all uprights, 2″x2″x1/8″ ASTM A-500 grade B structural carbon steel tubing (11 gauge) is used on cross members and benches.
  • All welds are ground down and stress tested.
  • Custom color powder coat paint, 3 stage pre-paint preparatory process that includes a state of the art pellet blasting machine system that purifies steel. The steel is then sent through a preheat stage before the final magnetic paint powder is applied and baked for a long lasting hardened finish.
  • Urethane foam grades are a minimal grading of HR-125 (density pcf of 2.60 +/- 0,10 and above in high-compression areas) and HR-150 (density pcf of 4.60 +/- 0.30).
  • Cams are computer designed and laser cut to exact shape to allow proper variable resistance throughout the exercise complete range of motion. All cams are 1/4″ thick solid steel. The cams are different for each machine to provide correct movement for the exercise.
  • Shrouded pulley housing is 6″x1/4″ thick solid steel.
  • Pulley wheels are 4″ and 6″ solid fiberglass reinforced body with a 1/2″ cable groove. Oil dipped double sealed racer ball bearings with a 1/2″ axis shaft hole. Sealed for moisture and dust proof.

Shipping and Installation are additional and you will be contacted by one of our Business Development Representatives to arrange them.
